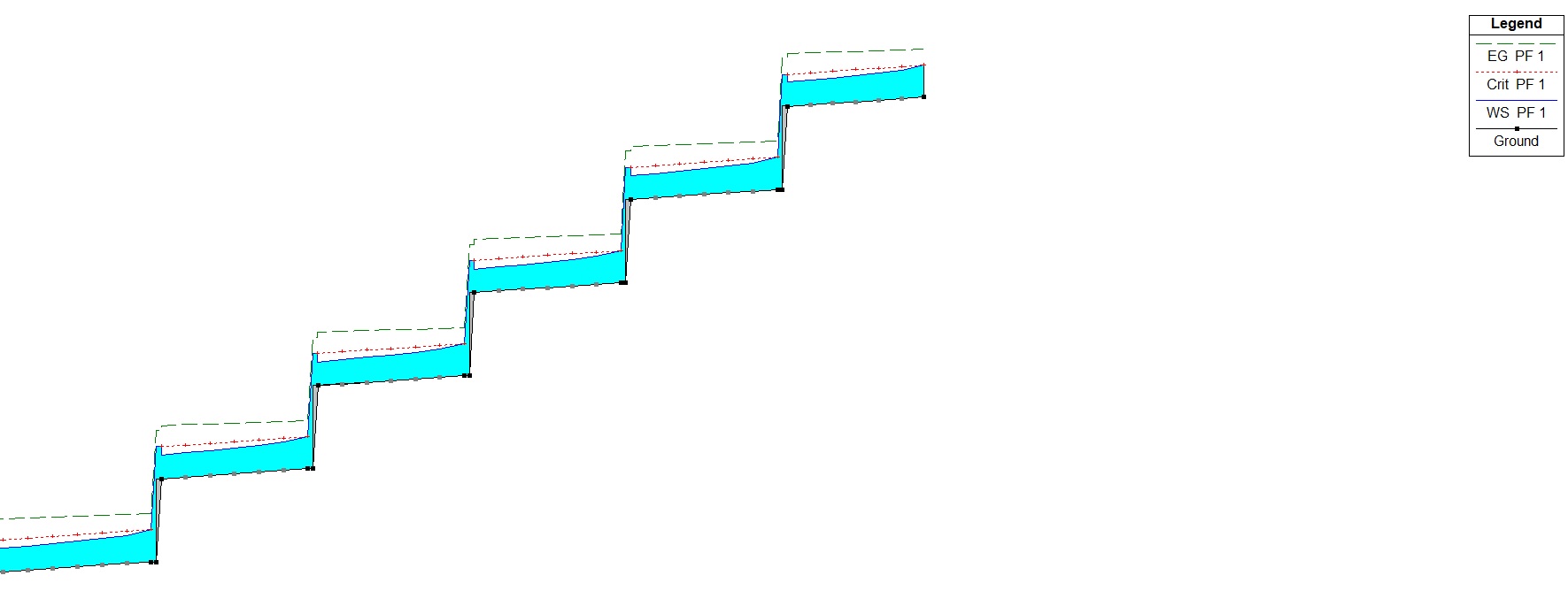

Hi, I inserted a few weirs as inline structures along a river reach. I have created fictitious cross sections immediately upstream and downstream of each dam. My current is supercritical upstream and downstream of the section, but I do not understand why the transition takes place through the critical depth.

July 25, 2017 at 2:10 am #10754

Anonymous
Guest

RAS won’t compute supercritical flow over an inline structure. So that is why it is defaulting to critical depth at that location.

July 25, 2017 at 11:34 am #10755

dave
Participant

So even the energy grade line is false!
