2D Pump Station. HEC-RAS 6.0 Beta 2

[irpanch]

Halo there,

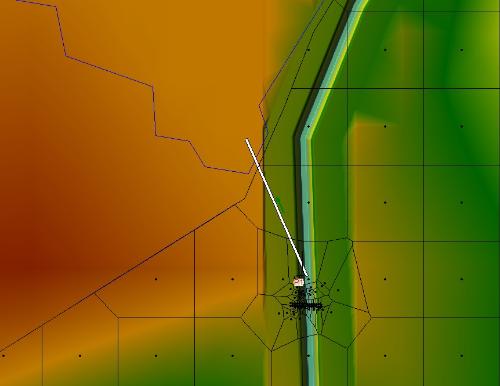

I try to create a pump station in 2D Mesh that connect to storage area which looks like these:

I do have already set the inlet from mesh and outlet to storage area.
But, when I run it, it keeps telling me that “GIS Centerline does not start with the inlet in 2d flow area..”.
I try to create a GIS centerline with a lot of scenarios (inside the mesh, outside mesh) but the result is still the same, it won’t run with the same message. I can’t find the “inlet” in 2d flow area.

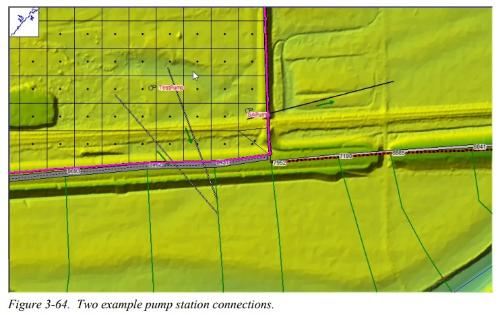

I do read the manual and seems there’s nothing extraordinary to connect the pump between mesh to SA.

I wonder if there are any additional things to do to create a connection between them?
Thanks in advance.
